| Camera Brackets | |||||
 |
|||||

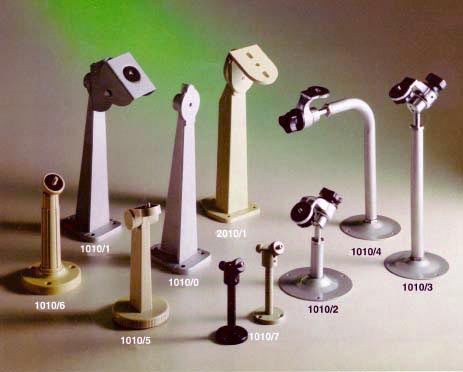

| Zytech International offers a wide array of camera mounting brackets and camera brackets. These are some examples of brackets that are available. If you need another type, please e-mail Zytech International for more information. | |||||
| MODEL HTB- | 2010/1 | 1010/0 | 1010/1 | 1010/2 | 1010/3 | 1010/4 | 1010/5 | 1010/6 | 1010/7 |
| MAX LOAD kg | 10 | 10 | 10 | 7 | 7 | 7 | 5 | 5 | 3 |
| CONSTRUCTION | Aluminum | Aluminum | Aluminum | Enamel | Enamel | Enamel | ABS | ABS | Steel |
| SWIVEL ANGLE (degrees) | 360 | 0 | 360 | 360 | 360 | 360 | 360 | 360 | 360 |
| TILT ANGLE (degrees) | 90 | 0 | 90 | 90 | 90 | 90 | 90 | 150 | 90 |
| SCREW SIZE | -- | -- | -- | 1/4" | 1/4" | 1/4" | 1/4" | 1/4" | 1/4" |
| DIMENSIONS (L)mm | 290 | 285 | 285 | 195 | 290 | 260 | 165 | 172 | * |
| SIZE BASE (H)mm
(W)mm |
98
87 |
97
76 |
97
76 |
ø100
-- |
ø100
-- |
ø100
-- |
ø90
-- |
ø90
-- |
ø45
-- |
| WEIGHT | 750gr | 500gr | 800gr | 450gr | 500gr | 650gr | 180gr | 180gr | 180gr |
