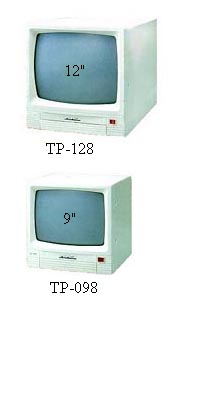

TP-098 ( 9" Monitor) |
TP-128 ( 12" Monitor) |
| INPUT VOLTAGE |
AC11OV/60Hz or 220V/50Hz, DC12V OR 24V |
AC11OV/60Hz or 220V/50Hz, DC12V OR 24V |
| POWER CONSUMPTION |
24 WATTS |
25 WATTS |
| INPUT SIGNAL |
0.5-2.0 Vpp Composite Video,Sync,Negative |
0.5-2.0 Vpp Composite Video,Sync,Negative |
| INPUT IMPENDANCE |
BNC Connector, 75 Ohm/High Switchable |
BNC Connector, 75 Ohm/High Switchable |
| RESOLUTION |
Center 800 TV Lines, Corner 700 TV Lines |
Center 800 TV Lines, Corner 700 TV Lines |
| LINEARITY |
Horizontal 12% Max Vertical 10% Max |
Horizontal 12% Max Vertical 10% Max |
| ADJUST SIZE RANGE |
Horizontal 80% - 105% Vertical 70% - 105% |
Horizontal 80% - 105% Vertical 70% - 105% |
| SCANNING FREQUENCY |
Vertical 48 - 62 Hz Horizontal 15750 (EIA) |
Vertical 48 - 62 Hz Horizontal 15750 (EIA) 15625 (CCIR) |
| CRT |
9", 90, 20ø |
12", 90, 20ø |
| OPERATING TEMPERATURE |
-10°C +60°C |
-10°C +60°C |
| DIMENSIONS |
240(W) x 250(H) x 260(D)mm |
300(W) x 300(H) x 310(D)MM |
| WEIGHT |
6.5Kgs |
9.4Kgs |
