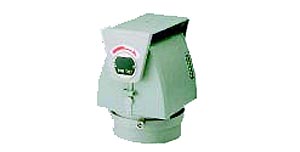

TP-302 INDOOR PAN/TILT DRIVE UNIT
Indoor Pan/Tilt Drive Unit
  • Angular Travel Pan: 350° Tilt : ±60°
  • Limit Stop Externally adjustable
  • Speed Pan: 5°/sec Tilt: 3°/sec
  • Load Rating Pan : 7 Kg Tilt : 4 Kg
  • Duty Cycle Pan : Continuous Tilt: Intermittent
  • Input Voltage AC24V/117V/220V (Option)
  • Motor Output 6 Watts
  • Normal Operating Current 24V-0.083A, 117V-0.02A, 220V-0.027A
  • Cable Requirment Six-conductor, unshielded
  • Operating Temperature -25°C to +60°C
  • Construction Aluminum and plastic
  • Finish light gray textured
  • Dimensions 184(H)x115(ø)mm
  • Weight 1.9 Kgs
TP-302C CONTROL UNIT FOR TP-302
  • Control Buttons Auto/Off/Manual,Left/Right,Up/Down
  • Input Voltage AC 117V/220V(Option), 60Hz/50Hz
  • Output Voltage AC 24V/117V/220V(Option),60Hz/50Hz
  • Operating Temperature -10°C to +60°C
  • Construction Steel, with silver gray baked enamel finish
  • Dimensions 152(W)x56(H)x188(D)mm
  • Weight 1.25Kgs
  Zytech INTERNATIONAL INC.
