| B/W

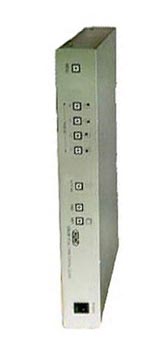

Quad Processor
Specifications:
| ITEMS |
HTMV-1016A (Color) |
HTMV-1013B (B/W) |
| Picture Refresh Rate |
NTSC:60 Fields per second/PAL:50FPS |
EIA:60 Fields per second/CCIR:50 FPS |
| Resloution (H x V) |
NTSC: 720 x 480 / PAL: 720 x 576 |
EIA: 720 x 480 / CCIR:720 x 576 |
| Video Format |
NTSC or PAL |
EIA or CCIR |
Video Input
|
(a) 1.0 Vp-p, 75 Ohm terminated, BNC x 4
(b) 1.0 Vp-p, 75 Ohm terminated, BNC x 1(VCR)
(c) Y/C, S-Video terminated |
1.0 Vp-p, 75 Ohm terminated, BNC x 4 |
| Video Output |
(a) 1.0 Vp-p, 75 Ohm terminated, BNC x 4 (Loop)
(b) 1.0 Vp-p, 75 Ohm treminated, BNC x 2 (VCR, Monitor)
(c) Y/C, S-Video treminated (VCR) Quad video
output, BNC x 2 |
(a) 1.0 Vp-p, 75 Ohm terminated, BNC x4 (Loop)
(b) 1.0 Vp-p, 75 Ohm terminated, BNC x 2(VCR,
Monitor) |
| Alarm Output |
(a) NC. NO. contact output (0.5A/DC 30V, AC 120V
max)
(b) Buzzer |
(a) NC. NO. contact output (0.5A/DC 30V, AC 120V
max)
(b) Buzzer |
| Auto Scan Time |
0-9.9 seconds |
0-9.9 seconds |
| Alarm Reset Time |
0-99 seconds |
0-99 seconds |
| Power Source |
AC 110V/ 230V adaptor |
AC 110V/ 230V adaptor |
| Power Consumption |
Less 30 Watts |
Less 10 Watts |
| Dimensions (W x D x H) |
326mm x 388mm x 48mm |
326mm x 388mm x 48mm |
| Net Weight |
4.0 kg (Net) |
3.0 kg (Net) |
*Specifications are Subject to Change Without Notice. |
