GoGo Rear View CCTV System

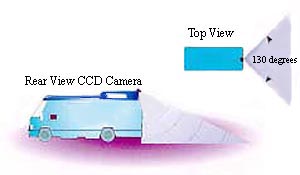

    The CCD Camera comes in a water-resistant and weather- resistant aluminium die-cast housing .  Once mounted the view angle can adjust up to 130° for a clear view behind your vehical to avoid collsions.

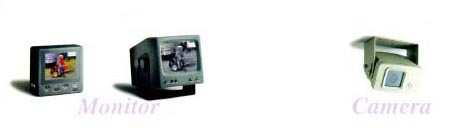

    The system includes one monitor either black and white or color, and one camera.  The specifications are shown below.

SPECIFICATION  RVL-80  RVT-55  SPECIFICATION  RVC-30
Screen Size  4" Color TFT LCD  5.5" B/W Picture Tube  Pick-up Device  1/3" B/W CCD image sensor (290,000 pixels)
Power Supply  DC 12V  DC 12V ~ 24V  Power Supply   DC 12V
Power Consumption  5 W  12.5 W  Power Consumption  110mA
Video Input  Composite Video Signal 1 Vp-p, 75 Ohm  Composite Video Signal 1 Vp-p, 75 Ohm  Video Output  Composite Video Signal 1Vp-p, 75 Ohm
Operating Temperature  0° C~ +60° C  -10° C~ +50° C  Operating Temperature  -20° C~ +55° C
Operating Humidity  < 80% RH  -- Operating Humidity  30% to 90% RH
Resolution  383(H) x 234(V) =89,622 dot  1000 TV lines (Center)  Resolution  380 TV lines
Brightness  180 cd/m2  -- Illumination (Min.)  0.1 Lux/F1.4
View Angle q ± 50° (Left, Right) q30° (Top), q10° (Down)  -- Field of View
View Angle (3.6mm Lens) 		 D:130° H:110° V:90°
D:92° H:72° V:57°
Contrast Ratio  100  -- S/N ratio 46dB (AGC off)
Dimension  130(W) x 117(H) x 45(D) mm  140(W) x 133(H) x 180(D)mm  Dimension   132(L) x 128(W) x 93(H)mm
Weight  480 g  3 kg  Weight  560 g
Accessories
  • Swivel Bracket
  • 20M coaxial cable
  • Hardware
  • Mounting Bracket
  • 20M coaxial cable
  • Hardware
 Accessories
  • Mounting Bracket
  • Hardware
